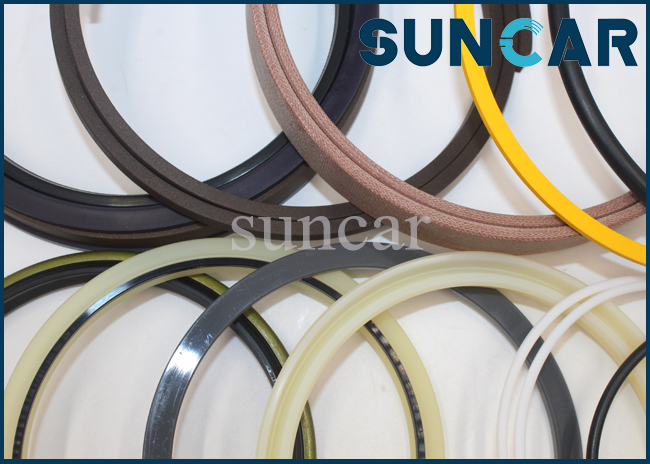

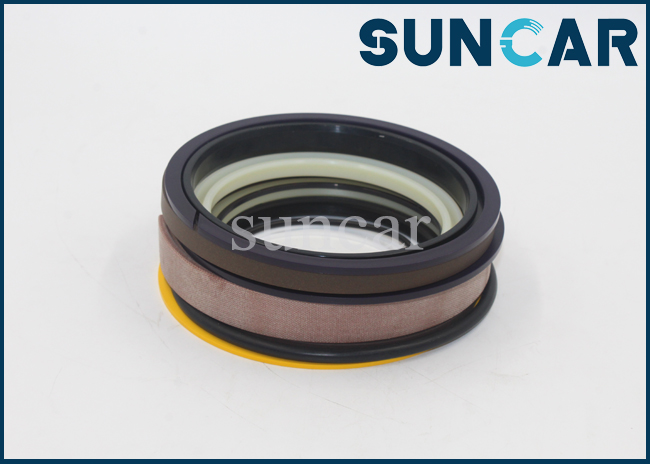

    31Y1-15390 Boom LH & RH Cylinder Service Kit Fits R290LC-7 R305LC-7 Hyundai Excavator Seal Kits

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : 31Y1-15390 HYUNDAI R290LC-7, R290LC7H, R305LC-7
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P
    Supply Ability : 1500 pcs per month
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    31Y1-15390 Boom LH & RH Cylinder Service Kit Fits R290LC-7 R305LC-7 Hyundai Excavator Seal Kits


    31Y1-15390 Boom LH & RH Cylinder Service Kit Fits R290LC-7 R305LC-7 Hyundai Excavator Seal Kits


    Product NameBoom Cylinder Service Kit
    Part Number31Y1-15390, 31Y115390
    Model7-SERIES CRAWLER EXCAVATOR R290LC-7, R290LC7H, R305LC-7 Hyundai
    MaterialPU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
    Place of OriginChina(Mainland)
    Brand nameSUNCAR
    PackingPP bag inside, carton box outside
    Shipping ModeBy air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
    Payment TermsWestern Union, Paypal, T/T, Transfer
    CertifiC.A.TionISO9001
    WarrantyUnavailable
    CustomizedOEM & ODM are welcomed
    C.A.Tegory GroupHydraulic cylinder seal kit, excavator service kits
    ConditionNew, genuine new
    SampleAvailable
    Applicable IndustriesBuilding material shops, machinery repair shops, retail, construction work...
    FeatureHigh sealing performance/ wear resistance
    AppliC.A.TionBoom
    Rod100 MM
    Bore140 MM
    Cylinder No.

    Boom LH Cylinder# 31N8-50121;

    Boom RH Cylinder# 31N8-50111


    Related Parts:

    Pos.Part NoQTYProduct Name
    *.31N8-50121[1]BOOM CYLINDER-LH
    *.31N8-50111[1]BOOM CYLINDER-RH
    *.31N8-52120[1]BOOM CYLINDER-LH
    *.31N8-52121[1]BOOM CYLINDER-LH
    *.31N8-52110[1]BOOM CYLINDER-RH
    *.31N8-52111[1]BOOM CYLINDER-LH
    *-1.31Y1-15241[1]BOOM CYLINDER SUB
    131Y1-15251[1]TUBE ASSY
    231Y1-15290[1]ROD ASSY
    331Y1-15320[1]GLAND
    4S732-100040[1]BUSHING-DD2
    5Y191-107000[1]RING-SNAP
    K6.Y220-100011[1]SEAL-ROD,IUH
    K7.Y180-100020[1]RING-BACK UP
    K8.Y240-100013[1]RING-BUFFER
    K9.Y110-100011[1]WIPER-DUST
    10Y190-114000[1]RING-SNAP
    K11.S631-130004[1]O-RING
    K12.S641-130003[1]RING-BACK UP
    1331YC-23040[1]RING-CUSHION
    1431Y1-15160[1]PISTON
    K15.S632-085004[1]O-RING
    K16.S642-085003[2]RING-BACK UP
    K17.Y420-140000[1]SEAL-PISTON
    K18.Y310-140000[2]RING-WEAR
    K19.Y440-140000[2]RING-DUST
    2031YC-66060[1]WASHER-LOCK
    2131YC-61132[1]NUT-LOCK
    22S109-180902[12]BOLT-SOCKET
    2931YC-11405[1]BUSHING
    3031YC-11155[1]BUSHING-PIN
    31Y000-100100[2]SEAL-DUST,DLI,KPU
    32Y000-090000[2]SEAL-DUST
    2331Y1-15330[1]BAND ASSY
    23-1.31Y1-15340[1]BAND SUB ASSY
    23-2.31YC-32100[1]BAND
    23-3.S015-120452[4]BOLT-HEX
    23-4.S411-120002[4]WASHER-SPRING
    23-5.S071-023430[2]U-BOLT
    23-6.S201-101002[4]NUT-HEX
    23-7.S411-100002[4]WASHER-SPRING
    2431Y1-15350[1]PIPE ASSY-R,LH
    2431Y1-15360[1]PIPE ASSY-R,RH
    2531Y1-15371[1]PIPE ASSY-B,LH
    2531Y1-15381[1]PIPE ASSY-B,RH
    K26.Y171-024004[2]O-RING
    27S107-120552[8]BOLT-SOCKET
    K.31Y1-15390[1]SEAL KIT
    K.31Y1-18070[1]SEAL KIT
    K.31Y1-18071[1]SEAL KIT

    FAQ:
    Q1. I want to buy your products, how can I pay?
    A: You can pay via T/T , L/C , Western Union, Money Gram, D/A, D/P, Transfer, etc.


    Q2. If we don’t find what we want on your website, what should we do?
    A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.


    Q3. Can we buy small quantity of each item for quality testing?
    A: Yes, we are glad to send product for quality testing if we have the item you need in stock.


    Q4. What is your main products ?
    A: We specialises in hydraulic breaker seal kit, excavator seal kit, wheel loaders seal kit, crawler dozers seal kit, pump seal kit, motor seal kit, dump trucks seal kit, wear ring/ O-ring / X-ring, center swing seal, track adjuster seal kit, etc.


    Q5: Quality of the products have a guarantee?
    A: Please rest assured to buy, our products are strictly controlled, 100% inspection will be carried out before shipment to ensure product quality.


    If you are interested in our products, please feel free to contact me, and you would be satisfied with our product and service.
