    R480LC-9 R520LC-9 Excavator Boom Seal Kit 31Y1-35590 31Y135590 Hyundai Cylinder Service Kit Parts

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : 31Y1-35590 Hyundai R480LC-9MH, R480LC-9, R480LC-9A, R480LC-9S, R520LC-9, R520LC-9A, R520LC-9S, HX480L, HX520L
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P
    Supply Ability : 1000 Piece per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    R480LC-9 R520LC-9 Excavator Boom Seal Kit 31Y1-35590 31Y135590 Hyundai Cylinder Service Kit Parts

    R480LC-9 R520LC-9 Excavator Boom Seal Kit 31Y1-35590 31Y135590 Hyundai Cylinder Service Kit Parts

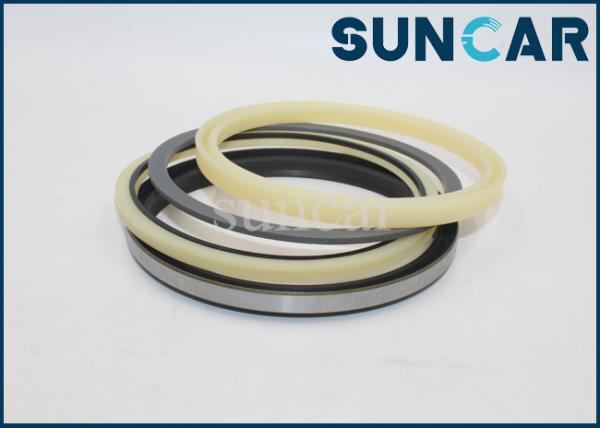

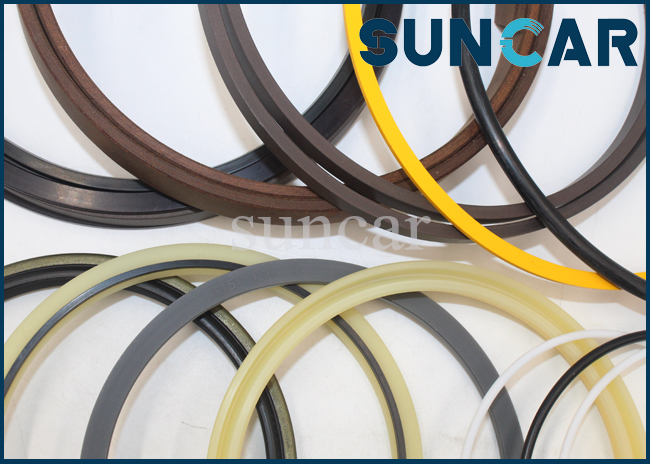

    Product NameBoom Cylinder Service Kit
    Part Number31Y1-35590, 31Y135590
    Model

    9-SERIES CRAWLER EXCAVATOR R480LC-9MH, R480LC-9, R480LC-9A, R480LC-9S, R520LC-9, R520LC-9A, R520LC-9S;

    F-SERIES CRAWLER EXCAVATOR HX480L, HX520L Hyundai

    MaterialPU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
    Place of OriginChina(Mainland)
    Brand nameSUNCAR
    PackingPP bag inside, carton box outside
    Shipping ModeBy air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
    Payment TermsWestern Union, Paypal, T/T, Transfer
    CertifiC.A.TionISO9001
    WarrantyUnavailable
    CustomizedOEM & ODM are welcomed
    C.A.Tegory GroupHydraulic cylinder seal kit, excavator service kits
    ConditionNew, genuine new
    SampleAvailable
    Applicable Industries

    Building material shops, machinery repair shops, retail,

    construction work...

    FeatureHigh sealing performance/ wear resistance
    AppliC.A.TionBoom

    Related Parts:

    Pos.Part NoQtyParts name
    *.31QB-50110[1]BOOM CYLINDER ASSY-LH
    *.31QB-50111[1]BOOM CYLINDER ASSY-LH
    *.31QB-50112[1]BOOM CYLINDER ASSY-LH
    *.31QB-50120[1]BOOM CYLINDER ASSY-RH
    *.31QB-50121[1]BOOM CYLINDER ASSY-RH
    *.31QB-50122[1]BOOM CYLINDER ASSY-RH
    *-1.31Y1-35460[1]BOOM CYL SUB ASSY
    *-1.31Y1-44580[1]BOOM CYL SUB ASSY
    131Y1-35470[1]TUBE ASSY
    131Y1-35471[1]TUBE ASSY
    231Y1-35530[1]ROD ASSY
    231Y1-35531[1]ROD ASSY
    331Y1-35560[1]GLAND
    4S732-115045[1]BUSHING-DD2
    5Y191-123000[1]RING-SNAP
    K6.Y220-115113[1]SEAL-ROD
    K7.Y180-115020[1]RING-BACK UP
    K8.Y240-115012[1]RING-BUFFER
    K9.Y110-115011[1]WIPER-DUST
    10Y190-131000[1]RING-SNAP
    K11.S632-160004[1]O-RING
    K12.S642-161003[1]RING-BACK UP
    1331YC-28120[1]RING-CUSHION
    1431Y1-35580[1]PISTON
    1431Y1-35585[1]PISTON
    K15.S632-090004[1]O-RING
    K16.S642-090003[2]RING-BACK UP
    K17.Y420-170000[1]SEAL-PISTON
    K18.Y310-170200[2]RING-WEAR
    K19.Y440-170102[2]RING-DUST
    K19.Y440-170100[2]RING-DUST
    2031YC-68120[1]NUT-LOCK
    21S114-100164[1]SCREW-SET
    K22.31YC-99H90[1]O-RING
    23S109-220954[12]BOLT-SOCKET
    2461Q6-97920[1]BUSH-PIN
    2461QH-73810[1]BUSHING-PIN
    2561Q6-97930[1]BUSH-PIN
    2561QH-96610[1]BUSHING-PIN
    K26.Y020-120000[4]SEAL-DUST,DLI,KPU
    2731Y1-26500[1]BAND ASSY-LH
    2731Y1-26501[1]BAND ASSY-LH
    2731Y1-26510[1]BAND ASSY-RH
    2731Y1-26511[1]BAND ASSY-RH
    27-1.31Y1-26520[1]BAND SUB ASSY-LH
    27-1.31Y1-26530[1]BAND SUB ASSY-RH
    27-2.31YC-32190[1]BAND
    27-3.S015-120452[4]BOLT-HEX
    27-4.S411-120002[4]WASHER-SPRING
    27-5.S071-024330[2]U-BOLT
    27-6.S201-101002[4]NUT-HEX
    27-7.S411-100002[4]WASHER-SPRING
    2831Y1-35600[1]PIPE ASSY-R,LH
    2831Y1-35601[1]PIPE ASSY-R,LH
    2831Y1-35610[1]PIPE ASSY-R,RH
    2831Y1-35611[1]PIPE ASSY-R,RH
    2931Y1-35860[1]PIPE ASSY-B,LH
    2931Y1-35861[1]PIPE ASSY-B,LH
    2931Y1-35870[1]PIPE ASSY-B,RH
    2931Y1-35871[1]PIPE ASSY-B,RH
    K30.Y171-024004[2]O-RING
    31S107-120604[8]BOLT-SOCKET
    35S652-810002[1]NIPPLE-GREASE
    K.31Y1-35590[1]SEAL KIT
