Brand Name : | SUNCAR |
Model Number : | 31Y1-06841 HYUNDAI R200W-3, R210LC-3, R210LC-3H |
Price : | Negotiation |
Payment Terms : | Western Union, L/C, T/T, , D/A, D/P |
Supply Ability : | 600 set per week |
Delivery Time : | 3-5 days after payment received(public holiday excluded) |
Bucket Cylinder Seal Kit 31Y1-06841 Fits Models R210LC-3 R210LC-3H Hyundai Replacement Excavator Parts
Product Name | Bucket Cylinder Seal Kit |
Part Number | 31Y1-06841, 31Y106841 |
Model | 3 SERIES WHEEL EXCAVATOR R200W-3; 3-SERIES CRAWLER EXCAVATOR R210LC-3, R210LC-3H Hyundai |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
Condition | New, genuine new |
Sample | Available |
Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
Feature | High sealing performance/ wear resistance |
AppliC.A.Tion | Bucket |
Rod | 80 MM |
Bore | 115 MM |
Cylinder No. | 31EM-60112 |
Packing And Shipping:
Some Policies Regarding Product Ordering:
(1) Payment Policy:
(2) Shipping Policy:
(3) Refund policy:
(4) Responsibility:
(5) Contact us:
Related Parts:
Pos. | Part No | Product Name | QTY |
*. | 31EM-60111 | BUCKET CYLINDER | [1] |
*. | 31EM-60112 | BUCKET CYLINDER | [1] |
*. | 31EM-60113 | BUCKET CYLINDER ASSY | [1] |
*-1. | 31EM-65013 | BUCKET CYL SUB ASSY | [1] |
1 | 31Y1-06740 | TUBE ASSY | [1] |
2 | 31Y1-06780 | ROD ASSY | [1] |
3 | 31Y1-06810 | GLAND | [1] |
3 | 31Y1-06810 | GLAND | [1] |
4 | S732-080030 | BUSHING-DU | [1] |
K5. | Y200-080011 | SEAL-ROD | [1] |
K6. | Y180-080020 | RING-BACK UP | [1] |
K7. | Y240-080011 | RING-BUFFER | [1] |
K8. | Y110-080011 | WIPER-DUST | [1] |
9 | Y190-094000 | RING-SNAP | [1] |
K10. | Y320-080000 | RING-WEAR | [1] |
K11. | S631-105004 | O-RING | [1] |
K12. | S641-105003 | RING-BACK UP | [1] |
13 | 31YC-23010 | RING-CUSHION | [1] |
13 | 31YC-23010 | RING-CUSHION | [1] |
14 | 31Y1-03660 | PISTON | [1] |
K15. | S632-070004 | O-RING | [1] |
K16. | S642-070003 | RING-BACK UP | [2] |
K17. | Y420-115000 | SEAL-PISTON | [1] |
K18. | Y310-115000 | RING-WEAR | [2] |
K19. | Y440-115000 | RING-DUST | [2] |
20 | 31YC-61050 | NUT-LOCK | [1] |
22 | S109-180654 | BOLT-HEX SOCKET HD | [8] |
34 | 31YC-11080 | BUSHING-PIN | [2] |
K35. | Y000-070200 | SEAL-DUST | [4] |
23 | 31Y1-03670 | BAND ASSY | [2] |
23-1. | 31Y1-03680 | BAND SUB ASSY | [1] |
23-2. | 31YC-31060 | BAND | [1] |
23-3. | S011-100352 | BOLT-HEX | [2] |
23-4. | S411-100002 | WASHER-SPRING | [1] |
23-5. | 31YC-36010 | CLAMP-PIPE | [2] |
23-6. | S015-120502 | BOLT-HEX | [1] |
23-7. | S411-120002 | WASHER-SPRING | [1] |
30 | 31Y1-06820 | PIPE ASSY-R | [1] |
30 | 31Y1-06821 | PIPE ASSY-R | [1] |
31 | 31Y1-06830 | PIPE ASSY-B | [1] |
31 | 31Y1-06831 | PIPE ASSY-B | [1] |
K32. | Y171-019004 | O-RING | [2] |
33 | S107-100454 | BOLT-SOCKET | [8] |
K. | 31Y1-06841 | SEAL KIT | [1] |

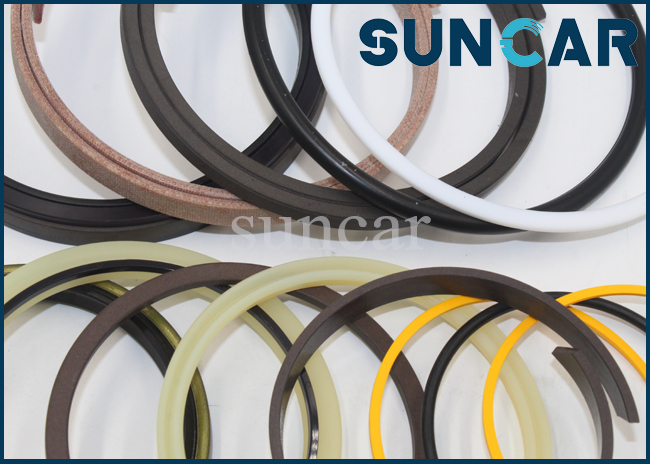

Product Show:
![]() |
