31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit

    Buy cheap 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit from wholesalers

    Buy cheap 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit from wholesalers
    • Buy cheap 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit from wholesalers
    • Buy cheap 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit from wholesalers
    • Buy cheap 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit from wholesalers
    • Buy cheap 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit from wholesalers

    31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : 31Y1-04031 HYUNDAI R130LC-3, R140LC-7
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P
    Supply Ability : 600 set per week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit


    31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit


    Product NameBlade Cylinder Service Kit
    Part Number31Y1-04031, 31Y104031
    ModelHYUNDAI R130LC-3, R140LC-7
    MaterialPU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
    Place of OriginChina(Mainland)
    Brand nameSUNCAR
    PackingPP bag inside, carton box outside
    Shipping ModeBy air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
    Payment TermsWestern Union, Paypal, T/T, Transfer
    CertifiC.A.TionISO9001
    WarrantyUnavailable
    CustomizedOEM & ODM are welcomed
    C.A.Tegory GroupHydraulic cylinder seal kit, excavator service kits
    ConditionNew, genuine new
    SampleAvailable
    Applicable IndustriesBuilding material shops, machinery repair shops, retail, construction work...
    FeatureHigh sealing performance/ wear resistance
    AppliC.A.TionBlade
    Rod70 MM
    Bore100 MM
    Cylinder No.

    R140LCD-7 Blade LH Cylinder# 31E6-70020

    R140LCD-7 Blade RH Cylinder# 31E6-70010


    Related Parts:

    Pos.Part NoProduct NameQTY
    *.31E6-70020DOZER CYLINDER-LH[1]
    *.31N4-70210DOZER BLADE CYL-LH[1]
    *.31E6-70010DOZER CYLINDER-RH[1]
    *.31N4-70220DOZER BLADE CYL-RH[1]
    *-1.31E6-75020DOZER CYL SUB ASSY-LH[1]
    *-1.31E6-75010DOZER CYL SUB ASSY-RH[1]
    131Y1-03870TUBE ASSY-LH[1]
    131Y1-03880TUBE ASSY-RH[1]
    231Y1-03930ROD ASSY[1]
    331Y1-03960GLAND[1]
    331Y1-03961GLAND[1]
    4S731-070040BUSHING-DU[1]
    K5.Y260-070000SEAL-STEP[1]
    K5.Y240-070011RING-BUFFER[1]
    K6.Y200-070011SEAL-ROD[1]
    K7.Y180-070020RING-BACK UP[1]
    K8.Y110-070011WIPER-DUST[1]
    9Y190-084000RING-SNAP[1]
    K10.S631-090004O-RING[1]
    K11.S641-090003RING-BACK UP[1]
    1231Y1-03970PISTON[1]
    K13.S632-055004O-RING[1]
    K14.S642-055003RING-BACK UP[2]
    K15.Y420-100000SEAL-PISTON[1]
    K16.Y310-100400RING-WEAR[1]
    17S113-080104SCREW-SET[1]
    18Y890-015011BALL-STEEL[1]
    19S109-160554BOLT-SOCKET[8]
    2931YC-12080BUSHING-PIN[2]
    30Y000-070200SEAL-DUST[4]
    2031Y1-03980BAND ASSY[1]
    20-1.31Y1-03990BAND SUB ASSY[1]
    20-2.S011-100352BOLT-HEX[2]
    20-3.S411-100002WASHER-SPRING[4]
    20-4.31YC-37010CLAMP-PIPE[1]
    20-5.S011-100502BOLT-HEX[2]
    2631Y1-04010PIPE ASSY-RH[1]
    2631Y1-25000PIPE ASSY-RH[1]
    2631Y1-04000PIPE ASSY-LH[1]
    2631Y1-24990PIPE ASSY-LH[1]
    2731YC-49060PORT-FLANGE[1]
    2731YC-49200PORT-FLANGE[1]
    28S107-080404BOLT-SOCKET[8]
    K31.Y171-015004O-RING[2]
    K.31Y1-04031SEAL KIT[1]
    K.31Y1-04032SEAL KIT[1]

    Basic Requirements For Sealing Materials:

    • The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
    • Have certain mechanical properties, such as tensile strength, elongation, etc.;
    • Appropriate elasticity and hardness, small compression set;
    • High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
    • It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
    • Good oxygen resistance and aging resistance, durable;
    • Abrasion resistance, no corrosion to metal;
    • Easy to shape and process, low price.

    Advantages:

    • Quality stability.
    • Professional R&D team.
    • We have all specifiC.A.Tions of our products and can meet customers’ product diversity needs.
    • We prefer to accept your lower MOQ in order to relieve your purchasing stress.
    • Our markets are widely distributed to North Europe, East Europe, West Europe, North America, South America, East Asia, Southeast Asia, Middle East, Africa, Australia, etc. and enjoy good reputation.

    Product Show:

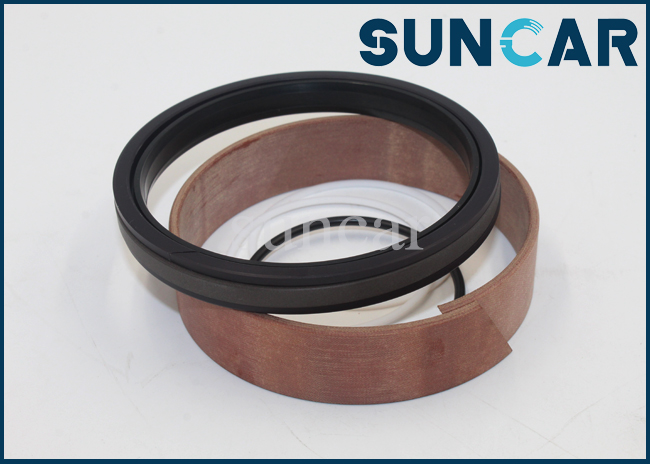

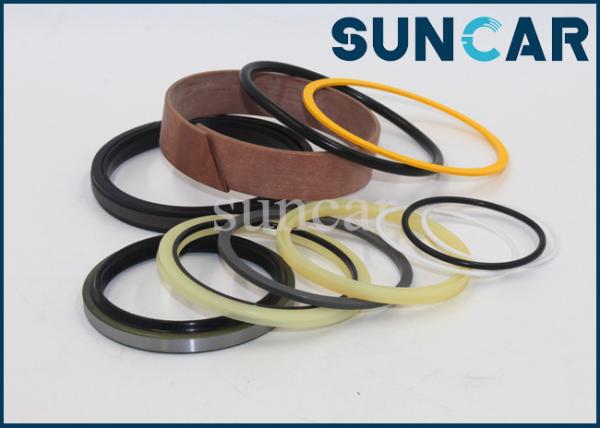

    Quality 31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit for sale
