175251A1 Good Quality Bucket Cylinder Seal Kit Case Part For Case Loader 580L 570MXT 570LXT

Ask Lasest Price
Brand Name :	Boom Cylinder Seal Kit
Model Number :	84259224
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability :	5000 SET/WEEK
Delivery Time :	3-5 Days After Payment Received(Public Holiday Excluded)

Add to Cart

Product Details
Company Profile

175251A1 Good Quality Bucket Cylinder Seal Kit Case Part For Case Loader 580L 570MXT 570LXT

1543256C1 Good Quality Bucket Cylinder Seal Kit Case Part For Case Loader U80C U80 U80B

Product Name	1543256C1 Good Quality Bucket Cylinder Seal Kit Case Part For Case Loader U80C U80 U80B
Part No.	1543256C1
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Applicable Industries	Machinery repair shops, construction works, energy & mining
Color	Black, White or other
Size	Standard Size
MOQ	We Accept Trial Order
Packing	PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time	3-5 Days After Payment Received(Public Holiday Excluded)
Payment	Western Union, L/C, T/T, etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Case Excavator
Condition	New
Suitable Model	(580L) - LOADER BACKHOE (NORTH AMERICA) (2/97-12/97) (8-124) - LOADER BUCKET CYLINDERS » 175251A1 (580L) - SERIES 2 LOADER BACKHOE - ASN JJG0239360 (2/97-12/00) (8-140) - LOADER BUCKET CYLINDERS » 175251A1 (570LXT) - LOADER LANDSCAPER (1/94-12/97) (8-124) - LOADER BUCKET CYLINDERS » 175251A1 (570LXT) - SERIES-2 LOADER LANDSCAPER - ASN JJG0225755 (1/98-12/01) (8-140) - LOADER BUCKET CYLINDERS » 175251A1 (570MXT) - SERIES 3 LOADER LANDSCAPER TIER 3 - ASN N8C510600 (1/08-12/12) (00-01) - INITIAL STOCKING LIST (ISL) » 175251A1

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

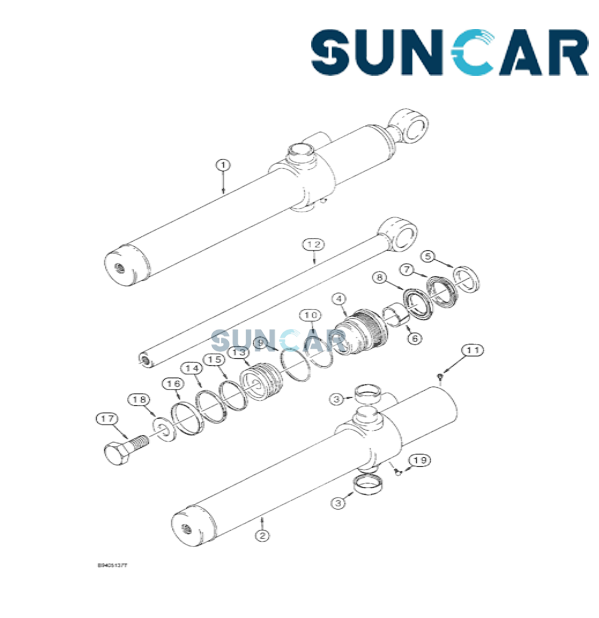

Related Parts:

Pos.	Part No	Qty	Parts name	Comments
1	175238A1	[2]	CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke	CAS ASSEMBLY 70, 2-3/4 ID x 522 mm, 20-9/16 inch stroke, bucket, left hand and right hand, Includes bushings in cylinder tube and without bushings at rod eye
2	175239A1	[1]	TUBE,69.85 mm ID, 76.99 mm OD	CAS ASSEMBLY cylinder, Includes: Ref. 3
3	G108512	[2]	BUSHING,41.2mm ID x 50mm OD x 18.7mm L	CAS tube
. .	NSS	[1]	NOT SOLD SEPARAT	CON GLAND ASSEMBLY cylinder, Includes: Ref. 4-6
4	175247A1	[1]	GLAND	CAS cylinder Superseded by part number: 175247A2
5	D95142	[1]	WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk	CAS WIPER piston rod Superseded by part number: 86631610
6	G102424	[1]	BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L	CAS - Center, Gland
. .	1542874C1	[1]	SEAL KIT,38.1mm Rod	CAS KIT, SEALS, NSS, Order 175251A1 below, Incl Ref 7-8
7	1542997C1	[1]	SEALING RING	CAS rod, NSS
8	1542996C1	[1]	SEAL	BHB buffer, NSS
9	238-5230	[1]	O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro	CAS Gland -230, 70 Duro, 2.484" ID x .139" Thk Superseded by part number: 70923815
10	G32129	[1]	BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk	CAS backup, gland O-ring
11	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"	CAS SCREW - self tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312
12	110307A1	[1]	PISTON ROD	CAS ROD piston, 38 mm, 1-1/2 inch diameter, without bushings in eye
13	175250A1	[1]	PISTON,69.28mm Bore, 38.1mm Rod, 50.7mm W	CAS cylinder
14	G104454	[1]	SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk	CAS piston, expandable, outer
15	G104439	[1]	RING	CAS seal, piston seal
16	G105187	[1]	RING	CAS wear, piston, piston
17	25863R1	[1]	BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8	IH - hex, 3/4 NF x 2-1/2 inch, grade 8
18	S94643	[1]	WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk	CAS flat, special, hardened
19	219-36	[1]	LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF	CAS FITTING grease, 45 degree, 1/8 PT x 7/8 inch, if used Superseded by part number: 80717
19	219-55	[1]	LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF	CAS NIPPLE, LUBE, , Replaces 219-36 fitting used on some models 90º, 1/8" NPT x .84" lg Superseded by part number: 80719
. .	175251A1	[1]	SEAL KIT	CAS KIT seal, Includes: Ref. 5, 6, 7, 8, 9, 10, 14, 15, 16, and P/N 1542874C1

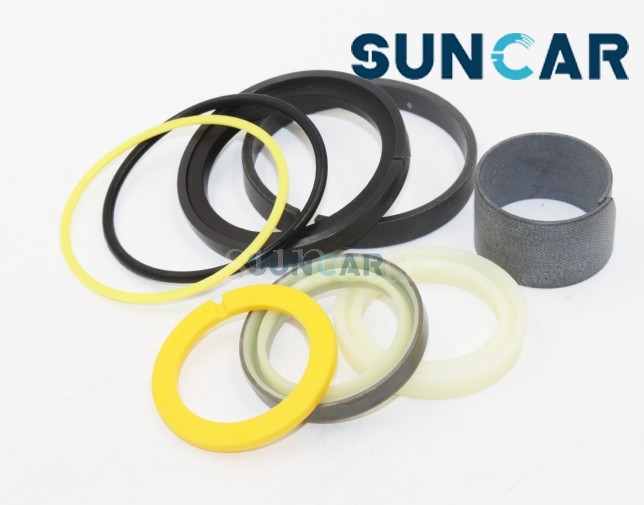

PRODUCT SHOW:
175251A1 Good Quality Bucket Cylinder Seal Kit Case Part For Case Loader 580L 570MXT 570LXT

FAQ:

1.If I only know the excavator model, but can not offer parts No., what should I do ?

Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?

Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?

Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?

Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?

Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
