Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit

    Buy cheap Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit from wholesalers

    Buy cheap Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit from wholesalers
    • Buy cheap Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit from wholesalers
    • Buy cheap Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit from wholesalers
    • Buy cheap Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit from wholesalers

    Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit

    Ask Lasest Price
    Brand Name : Kobelco Main Valve Seal Kit
    Model Number : YW30V00001F1
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P, Paypal
    Supply Ability : 5000 SET/WEEK
    Delivery Time : 3-5 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    Kobelco YW30V00001F1 Main Valve Seal Kit For Excavator [SK100L, SK100] Repair Kit

    Kobelco YW30V00001F1 Main Valve Seal Kit

    For Excavator [SK100L, SK100] Repair Kit

    Product Name

    Kobelco YW30V00001F1 Main Valve Seal Kit

    For Excavator [SK100L, SK100] Repair Kit

    Part No.YW30V00001F1
    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent
    Hardness70-90 Shore A
    ColorBlack, White or other
    SizeStandard Size
    MOQWe Accept Trial Order
    PackingPP BAG & CARTON BOX( According To Your Requirements)
    Delivery Time3-5 Days After Payment Received(Public Holiday Excluded)
    PaymentWestern Union, L/C, T/T, etc.
    PortHUAGNPU,China (Mainland)
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed

    AppliC.A.Tion

    Kobelco Excavator
    ConditionNew
    Suitable Model

    (SK100) - EXCAVATOR BTW YW06501 - YW07744 (1/94-12/95)

    (07-001[01]) - VALVE ASSY, CONTROL » YW30V00001F1

    (07-001[02]) - VALVE ASSY, CONTROL » YW30V00001F1

    (SK100L) - EXCAVATOR BTW LX10101 - LX10160 (1/94-12/95)

    (07-001[01]) - VALVE ASSY, CONTROL » YW30V00001F1

    (07-001[02]) - VALVE ASSY, CONTROL » YW30V00001F1

    The Following Seal Kits We Also Can Supply:


    * Hydraulic Pump Seal Kit

    * Control Valve Seal Kit

    * O Ring Kit Box

    * Gear Pump Seal Kit

    * Travel Motor Seal Kit

    * Swing Motor Seal Kit

    * Pilot Valve Seal Kit/ PPC Seal

    * Adjuster Seal Kit

    * Center Joint Seal Kit

    * Boom Cylinder Seal Kit

    * Arm Cylinder Seal Kit

    * Bucket Cylinder Seal Kit

    * Breaker Hammer Seal Kit


    Customer Service:


    • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
    • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
    • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
    • Positive feedback is very important to us.


    Related Parts:


    Pos.Part NoQtyParts name
    . .YW30V00001F1[1]VALVE ASSY,CONTROL
    . .YW30V00001F2[1]VALVE ASSY,CONTROL
    . .YW30V00001F3[1]VALVE ASSY,CONTROL
    10YW30V00001S010[1]SPOOL ASSY FOR F2 ONLY
    11YW30V00001S011[1]SPOOL ASSY FOR F2 F3 ONLY
    12YW30V00001S012[2]SPOOL FOR F2 F3 ONLY
    13YW30V00001S013[1]SPOOL ASSY FOR F3 ONLY
    154YN30V00001S154[2]PLUG
    155YW30V00001S155[1]PLUG
    156YN30V00001S156[2]PLUG
    157YN30V00001S157[1]PLUG
    158YN30V00001S158[5]PLUG
    162ZD12G03000[11]O-RING,29.40mm ID x 35.60mm OD x 3.10mm
    163ZD12P01500[3]O-RING
    164ZD12P02400[2]O-RING
    166ZD12P01400[6]O-RING
    167ZD12P01100[1]O-RING
    168ZD12P00800[5]O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
    2012436U1265S201[11]COVER
    2062436U1265S203[7]COVER
    211YW30V00001S211[1]COVER
    212YW30V00001S212[1]COVER
    2622436U1457S162[12]O-RING,2mm Thk x 39.5mm ID, 90 Duro
    265ZD12G03500[8]O-RING,34.40mm ID x 40.60mm OD x 3.10mm
    266ZD12P00700[10]O-RING,1.6mm Thk x 6.8mm ID, 90 Duro
    273ZS23C08025[42]SCREW,Hex Socket Head, M8 x 25mm
    274ZS23C06016[6]SCREW,Hex Socket Head, M6 x 16mm
    301YW30V00001S301[1]SPOOL ASSY FOR F1 ONLY
    302YW30V00001S302[1]SPOOL ASSY
    303YW30V00001S303[1]SPOOL
    304YW30V00001S304[1]KIT
    305YW30V00001S305[1]SPOOL ASSY FOR F1 ONLY
    306YW30V00001S306[2]SPOOL FOR F1 ONLY
    307YW30V00001S307[1]SPOOL
    308YW30V00001S308[1]SPOOL
    309YW30V00001S309[2]SPOOL
    310YW30V00001S310[1]SPOOL
    324YW30V00001S324[2]SPRING
    325YN30V00001S325[7]SPRING
    326YN30V00001S326[5]SPRING
    327YN30V00001S327[2]SPRING
    3282436U1265S327[2]SPRING
    3292436U1265S322[4]SPRING
    3322436U1265S332[22]SPRING SEAT
    3332436U1265S336[10]BOLT
    334Y130V00001S334[1]BOLT, SPACER
    3372436U1265S335[9]STOP
    338YN30V00001S338[2]STOP
    341YW30V00001S341[1]PLATE
    342YW30V00001S342[1]PLATE
    5122436U1265S511[11]POPPET
    513YW30V00001S513[2]POPPET
    514YW30V00001S514[2]POPPET
    515YN30V00001S515[1]POPPET
    518YW30V00001S516[1]ROD
    5222436U1265S521[13]SPRING
    524YW30V00001S524[2]SPRING
    552YN30V00001S552[13]PLUG
    555YN30V00001S555[4]PLUG
    556YW30V00001S556[2]PLUG
    557YW30V00001S557[1]PLUG
    558YW30V00001S558[1]CAPSCREW
    559ZN12C12010[1]NUT
    562ZD12P02000[16]O-RING,2.4mm Thk x 19.8mm ID, 90 Duro
    564ZD12P01800[1]O-RING
    565ZD12P00900[1]O-RING
    56624036R83S363[1]RING, BACK-UP
    601YW22V00001F1[1]VALVE PRESSURE RELIE
    602YW22V00002F1[6]CONTROL VALVE
    973ZS23C14110[7]SET SCREW,Hex Socket Head, M14 x 110mm
    974ZS23C14075[1]CAPSCREW,Hex Socket Head, M14 x 75mm
    . .YW30V00001R100[1]BOOM SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF 10,328,329,332,334,337
    . .YW30V00001R110[1]ARM SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF
    . .YW30V00001R120[1]KIT
    . .YW30V00001R130[2]SLEWING SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF 303, 324. 329. 332, 333, 337 FOR F2 ONLY
    . .YW30V00001R140[1]TRAVEL SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF 12, 325,327,332,333, 338 FOR F2 ONLY
    . .YW30V00001R150[1]STRAIGHT TRAVEL SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF 307, 325, 326,332, 333, 337 FOR F2 ONLY
    . .YW30V00001R160[1]SPOOL
    . .YW30V00001R170[1]BOOM CONFLUENCE SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF 11,325,326,332,333,337 FOR F2 ONLY
    . .YW30V00001R180[2]CUT SPOOL KIT (SPOOL + SPRING)CONSISTS OF REF 309,325, 326,332, 333, 337 FOR F2 ONLY

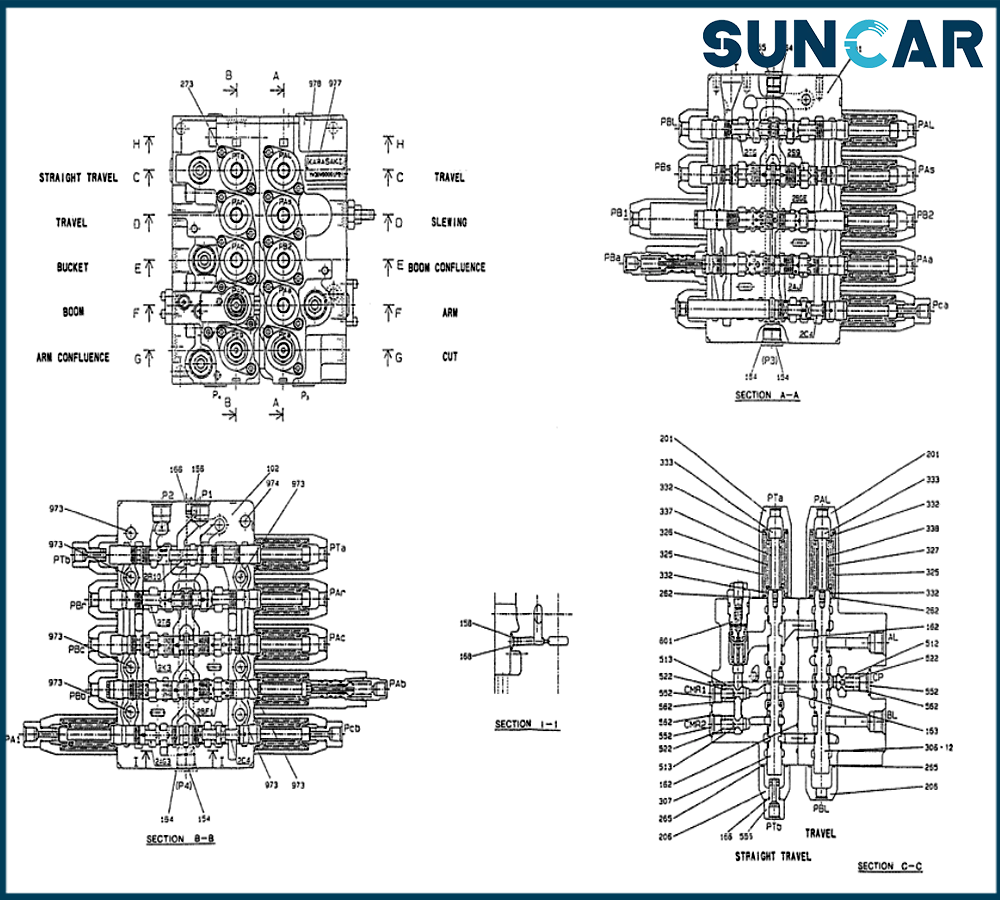

    PRODUCT SHOW:

    FAQ:
    1.If I only know the excavator model, but can not offer parts No., what should I do ?
    Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

    2.How can I pay the order?
    Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

    3.When will get the items after I place order?
    Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

    4.How can I do if there is something wrong with the items?
    Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

    5.What is your main products ?
    Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
