Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160]

    Buy cheap Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160] from wholesalers

    Buy cheap Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160] from wholesalers
    • Buy cheap Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160] from wholesalers
    • Buy cheap Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160] from wholesalers
    • Buy cheap Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160] from wholesalers
    • Buy cheap Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160] from wholesalers

    Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160]

    Ask Lasest Price
    Brand Name : Doosan Swing Motor Seal Kit
    Model Number : 2401-9247KT 24019247KT
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T, , D/A, D/P, Paypal
    Supply Ability : 5000 SET/WEEK
    Delivery Time : 3-5 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit For Excavator [Solar130,Solar140,Solar155,Solar160]

    Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit

    For Excavator [Solar130,Solar140,Solar155,Solar160]

    Product Name

    Doosan 2401-9247KT 24019247KT Swing Motor Seal Kit

    For Excavator [Solar130,Solar140,Solar155,Solar160]

    Part No.

    2401-9247KT 24019247KT

    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent
    Hardness70-90 Shore A
    ColorBlack, White or other
    SizeStandard Size
    MOQWe Accept Trial Order
    PackingPP BAG & CARTON BOX( According To Your Requirements)
    Delivery Time3-5 Days After Payment Received(Public Holiday Excluded)
    PaymentWestern Union, L/C, T/T, etc.
    PortHUAGNPU,China (Mainland)
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed
    AppliC.A.TionDoosan Excavator
    ConditionNew
    Suitable Model

    S150LC-7B

    ELECTRIC PARTS(1) » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 130-2

    ELECTRIC PARTS - CABIN » SEAL KIT;SWING MOTOR 2401-9247KT

    TRAVEL MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 130LC-V

    ARM CYLINDER-2m ARM » SEAL KIT;SWING MOTOR 2401-9247KT

    MAIN PIPING(4) » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 130LC-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 130W-V(1)

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 130W-V(2)

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 140LC-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 140LC-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 140W-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 140W-V & S160W-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 155LC-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    SOLAR 160W-V

    SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9247KT

    The Following Seal Kits We Also Can Supply:


    * Hydraulic Pump Seal Kit

    * Control Valve Seal Kit

    * O Ring Kit Box

    * Gear Pump Seal Kit

    * Travel Motor Seal Kit

    * Swing Motor Seal Kit

    * Pilot Valve Seal Kit/ PPC Seal

    * Adjuster Seal Kit

    * Center Joint Seal Kit

    * Boom Cylinder Seal Kit

    * Arm Cylinder Seal Kit

    * Bucket Cylinder Seal Kit

    * Breaker Hammer Seal Kit


    Customer Service:


    • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
    • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
    • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
    • Positive feedback is very important to us.

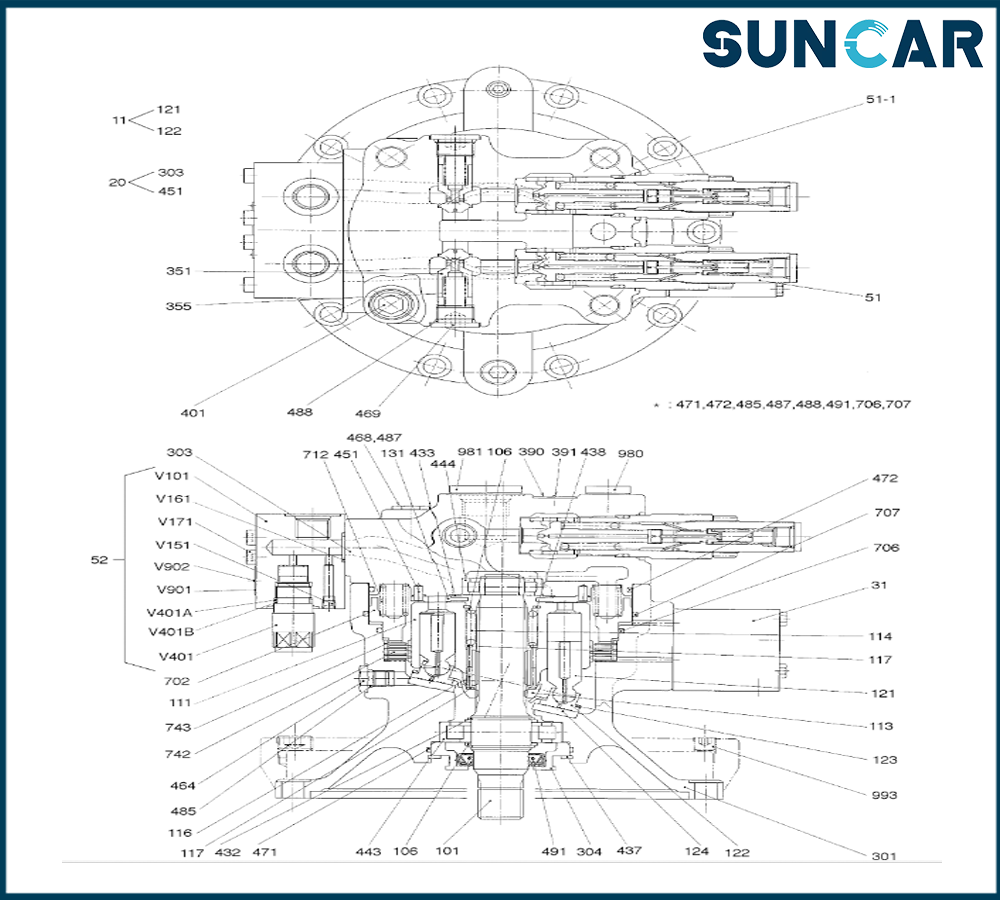

    Related Parts:

    Pos.Part NoQtyParts name
    *.2401-9247KT[1]SEAL KIT;SWING MOTOR
    -.37S0C018N0011[1]SWING MOTOR
    1013724250-0253[1]SHAFT;DRIVE
    1063753700502[3]SPACER
    1137S0A001-11[1]PISTON ASSY
    1113724370-0177[1]CYLINDER
    1133753700501[1]RETAINER
    1143753700519[1]SPRING;CYLINDER
    116PJR318[12]ROD;PUSH
    1173753700503[2]SPACER;F
    1213753700507[9]PISTON
    1223743700473[9]SHOE
    1233743700471[1]PLATE;SET
    1243753700499[1]PLATE;SHOE
    1313743700472[1]PLATE;VALVE
    2037S0C001-20[1]VALVE CASING ASSY
    3013723270-0163[1]CASING;FI
    3033723700341[1]CASING
    3043753700500[1]COVER;FRONT
    313702490-0336[1]TIME DELAY VALVE
    3513753700657[2]PLUNGER
    3553753700660[2]SPRING
    390PNPA-2550A[1]PLATE;NAME
    391OSK2548[2]PIN
    401OSBM1675[4]SCREW;HEX
    432OSR35[2]RING;SNAP
    433PWR20[1]RING;SNAP
    437ORR80[1]RING;SNAP
    438ORR42[1]RING;SNAP
    443PNUP207[1]BEARING;COLLAR
    444PNU204EV[1]BEARING;COLLAR
    451OSPV512[2]PIN
    464OVP14[1]PLUG
    468OVP14[2]PLUG
    469OROM22[2]PLUG
    471OORBG80[1]O-RING
    472OORWG34[1]O-RING
    485OORBP11[1]O-RING
    487OORBP11[2]O-RING
    488OORBP20[2]O-RING
    491PTCN32M[1]SEAL;OIL
    51V9605299046[2]RELIEF VALVE
    51V9612269934[2]RELIEF VALVE
    51-1.OORBG30[2]O-RING
    52V9606139107[1]SWING REACTIONLESS VALVE
    7023733700470[1]PISTON;BRAKE
    706OORWG31[1]O-RING
    707OORWG36[1]O-RING
    7123753700520[16]SPRING;BRAKE
    7423724730-0007[3]PLATE;FRICTION
    7433724690-0007[4]PLATE;SEPARATOR
    980PVA38A[1]PLUG;MASKING PF3/8
    981PVA34A[1]PLUG;MASKING PF3/4
    992OBP12[1]PLUG
    993OBP14[1]PLUG
    V101.VZ33170-0840[1]CASING
    V151.PBP116-2403[4]PLUG
    V161.OORBP22[2]O-RING
    V171.OSBM70[8]SCREW;HEX
    V401.V9409196196[2]VALVE;SWING REACTIONLESS
    V401A.OORBP20[2]O-RING
    V401B.OT2BP20[2]RING BACK UP
    V901.PNPA-2550A[1]PLATE;NAME
    V902.OSK2548[2]PIN



    PRODUCT SHOW:



    FAQ:
    1.If I only know the excavator model, but can not offer parts No., what should I do ?
    Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

    2.How can I pay the order?
    Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

    3.When will get the items after I place order?
    Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

    4.How can I do if there is something wrong with the items?
    Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

    5.What is your main products ?
    Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
