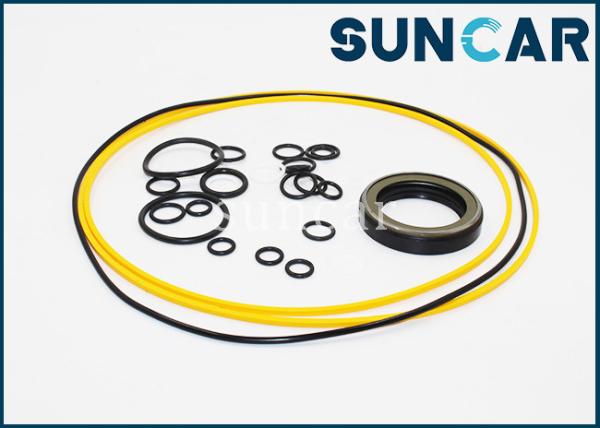

Doosan 2046A-65123 2046A65123 Travel Motor Seal Kit For Excavator[Solar400LC-V]

Doosan 2046A-65123 2046A65123 Travel Motor

Seal Kit For Excavator[Solar400LC-V]

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

• If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
• Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
• If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
• Positive feedback is very important to us.


  ​Related Parts:

Pos.	Part No	Qty	Parts name
-.	2401-9167A	[2]	MOTOR;TRAVEL
100	20460-62304	[1]	MOTOR;PISTON
101	20461-63215	[1]	CASE
102	20463-61307	[1]	PLATE ASSY;BASE
102-1.	20461-67901	[1]	PLATE;BASE
102-13.	20461-61308	[1]	SPRING
102-14.	20461-52406	[1]	PLUG
102-15.	95113-01800	[2]	O-RING 1BP-18
102-16.	20461-61402	[1]	GUIDE;SPRING
102-17.	20461-62401	[1]	PLUG
102-18.	94341-06162	[2]	WASHER
102-19.	97123-02111	[3]	PLUG
102-2.	21963-50222	[1]	PLUNGER ASSY
102-20.	21961-40804	[2]	ORIFICE
102-21.	97123-03111	[1]	PLUG
102-22.	21961-50801	[2]	ORIFICE
102-3.	21961-50502	[2]	SEAT;SPRING
102-4.	21961-50421	[2]	SPRING
102-5.	21961-50518	[2]	SEAT;SPRING
102-6.	21963-50615	[2]	CAP ASSY
102-7.	21963-40190	[2]	RELIEF VALVE ASSY
102-8.	15096-01010	[12]	PLUG
102-9.	20463-60908	[1]	VALVE ASSY
103	20461-60212	[1]	SHAFT
104	20461-61512	[1]	BLOCK;CYLINDER
105	20461-62307	[1]	PISTON;VALVE
106	20462-60112	[9]	PISTON ASSY
107	20461-61105	[1]	PLATE;RETAINER
108	20461-67705	[1]	HOLDER;RETAINER
109	20461-67411	[1]	PLATE;WASHER
110	20461-69206	[2]	BALL;STEEL
111	20462-60113	[2]	PISTON ASSY
112	20461-56901	[1]	BEARING;ROLLER
113	20461-66903	[1]	BEARING;ROLLER
114	20461-68603	[1]	RING;SNAP
115	20461-61403	[1]	SEAT;SPRING
116	20461-61309	[1]	SPRING
117	20461-61404	[1]	SEAT;SPRING
118	20461-50801	[1]	PIN
119	20461-60801	[3]	PIN
120	92703-14450	[10]	BOLT M14X45
121	20461-52101	[1]	SEAL;OIL
122	20461-65205	[1]	O-RING
123	20461-66701	[1]	O-RING
125	20461-69408	[1]	PISTON;BRAKE
126	20461-69604	[3]	PLATE;FRICTION
127	20461-69504	[4]	DISC
128	20361-40845	[4]	PIN
129	20461-51302	[8]	SPRING
130	20461-66703	[1]	O-RING
131	20381-19807	[1]	O-RING
133	95113-01000	[4]	O-RING 1BP-10
134	15096-01010	[6]	PLUG
135	21961-40807	[1]	ORIFICE
136	95113-01800	[2]	O-RING 1BP-18
137	20461-52406	[2]	PLUG
140	20461-61310	[2]	SPRING
141	20461-51310	[4]	SPRING
142	91511-05050	[1]	SCREW;DRIVE
2-1.	21961-50214	[1]	PLUNGER
2-2.	21961-50306	[2]	VALVE;CHECK
2-3.	21961-50403	[2]	SPRING
2-4.	21961-50627	[2]	PLUG
2-5.	95113-02100	[2]	O-RING 1BP-21
200	20940-65420	[1]	BOX;GEAR
201	20943-60143	[1]	HOLDER A S/A
201-1.	20941-61063	[1]	HOLDER A
201-2.	20941-61653	[3]	GEAR;PLANETARY A
201-3.	20941-60427	[3]	BEARING;NEEDLE
201-4.	20941-63912	[3]	RACE;INNER
201-5.	20941-62223	[3]	WASHER;THRUST
201-6.	20941-63307	[3]	SCREW
201-7.	20941-62382	[1]	PLATE;THRUST
202	20943-60144	[1]	HOLDER B S/A
202-1.	20941-61109	[1]	HOLDER B
202-2.	20941-61720	[4]	GEAR;PLANETARY B
202-3.	20941-60428	[4]	BEARING;NEEDLE
202-4.	20941-63911	[4]	RACE;INNER
202-5.	20941-62222	[4]	WASHER;THRUST
202-6.	20941-63307	[4]	SCREW
202-7.	20941-62380	[1]	PLATE;THRUST
203	20943-60145	[1]	HOLDER C S/A
203-1.	20941-61207	[1]	HOLDER C
203-2.	20941-61803	[4]	GEAR;PLANETARY C
203-3.	20941-60429	[4]	BEARING;NEEDLE
203-4.	20941-61925	[4]	SHAFT;GEAR C
203-5.	20941-64001	[4]	RACE;OUTER
203-7.	20941-62224	[8]	WASHER;THRUST
203-8.	93711-80501	[4]	PIN;SPRING
204	20941-61365	[1]	GEAR;DRIVE
205	20941-62381	[1]	PLATE;THRUST
206	20941-61421	[1]	GEAR;SUN B
207	20946-89723	[1]	RING;SNAP
208	20941-61503	[1]	GEAR;SUN C
209	20941-63005	[1]	RING;SNAP
210	20941-60180	[1]	FLANGE
211	20366-99838	[1]	SEAL;FLOATING
212	20367-99011	[2]	BEARING;ANGULAR
213	20941-63542	[1]	HOUSING
214	20946-92625	[1]	SHIM 1.0T
214	20946-92626	[1]	SHIM 0.5T
214	20941-62724	[1]	SHIM 0.3T
214	20941-62725	[1]	SHIM 0.1T
214	20941-62726	[1]	SHIM 0.05T
215	20941-62609	[4]	PIN
216	92703-20110	[4]	BOLT M20X110
217	92703-18500	[16]	BOLT M18X50
218	20946-92631	[4]	PLATE
219	20941-64211	[1]	GEAR;RING
221	92703-14110	[26]	BOLT M14X110
222	20941-62610	[3]	PIN
223	20941-62376	[1]	PLATE;THRUST 2.3T
223	20941-62377	[1]	PLATE;THRUST 2.8T
223	20941-62379	[1]	PLATE;THRUST 3.2T
224	20941-64129	[1]	COVER
225	92703-10200	[13]	BOLT M10X20
226	20941-64901	[3]	PLUG
228	20461-42401	[4]	PLUG
229	20943-60201	[1]	COUPLING ASSY
229-1.	20941-60901	[1]	COUPLING
229-2.	93711-60631	[1]	PIN;SPRING
23	95113-01100	[1]	O-RING 1BP-10
231	94101-20511	[4]	WASHER;SPRING
232	95113-02400	[3]	O-RING
233	95113-01400	[4]	O-RING
300	92703-14110	[3]	BOLT M14X110
400	20631-33836	[1]	PLATE;NAME
500	91911-01489	[2]	SCREW;DRIVE
6-1.	21961-50718	[1]	CAP
6-2.	21963-50701	[1]	PISTON S/A
6-2A.	21961-51405	[1]	PISTON
6-2B.	21961-41502	[1]	GUIDE;SPRING
6-2C.	96311-04760	[1]	BALL;STEEL
6-2D.	21961-40405	[1]	SPRING
6-3.	21961-50422	[1]	SPRING
6-4.	95123-04500	[1]	O-RING
6-5.	92703-12400	[4]	BOLT M12X40
7-1.	21961-40919	[1]	HOUSING;RELIEF
7-10.	95113-02100	[1]	O-RING 1BP-21
7-11.	95713-02100	[2]	RING;BACK-UP
7-13.	21961-41509	[1]	GUIDE;SPRING
7-14.	95113-01250	[1]	O-RING 1BP-12.5
7-15.	21961-99032	[1]	SCREW;SET
7-16.	93367-12072	[1]	NUT M12
7-17.	95113-01500	[1]	O-RING 1BP-15
7-18.	95712-01500	[2]	RING;BACK-UP
7-2.	21961-41014	[1]	POPPET
7-3.	21961-41605	[1]	SEAL;POPPET
7-4.	21961-40525	[1]	SEAT;SPRING
7-5.	21961-40444	[1]	SPRING
7-6.	21961-40636	[1]	PLUG
7-7.	21001-00182	[1]	O-RING
7-9.	21961-41412	[1]	PISTON;FREE
700	30521-90102	[1]	PLUG;SHIPPING
800	30521-90106	[2]	PLUG;SHIPPING
9-1.	20461-55804	[1]	SPOOL A
9-3.	20461-59102	[1]	FILTER
9-4.	95113-00600	[1]	O-RING
9-5.	95113-00500	[1]	O-RING 1BP-5
9-6.	95712-00600	[1]	RING;BACK UP
9-7.	95712-00500	[1]	RING;BACK UP
9-8.	94721-11101	[1]	RING;SNAP
A1.	2046A-65123	[1]	SEAL KIT(MOTOR)
A1.	2401-9167AKT	[1]	SEAL KIT(MOTOR)
A2.	2094A-65140	[1]	SEAL KIT(GEAR BOX)
B14.	2046B-62107	[1]	CAP KIT
B15.	2046B-62302	[1]	PLATE BASE KIT
B4.	150102-00685	[1]
B5.	2046B-61005	[1]	PLATE RETAINER KIT
B6.	2094B-62708	[1]	SHIM KIT
B7.	2094B-62319	[1]	PLATE THRUST KIT
